- Heavy-duty steel construction – robust protection for vulnerable warehouse corners
- High-visibility yellow – enhances safety and helps prevent accidental collisions
- Indoor and outdoor use – durable finish resists wear in warehouses, factories, and loading areas
- Integral fixing points – pre-drilled base plates ensure quick and secure installation
- Description
- Specifications

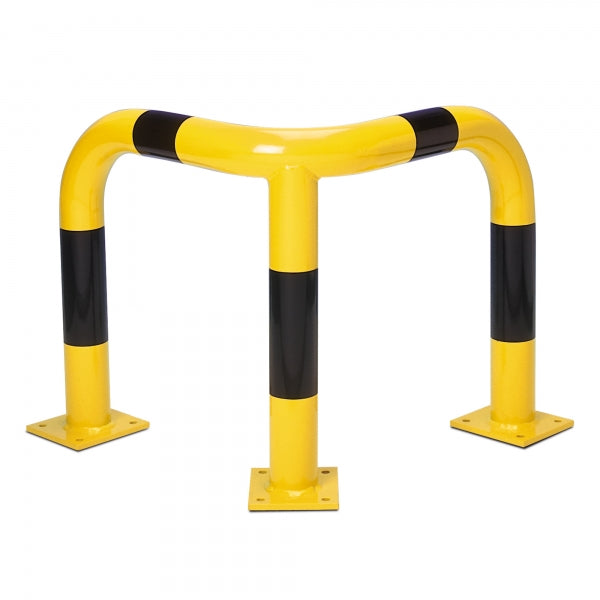

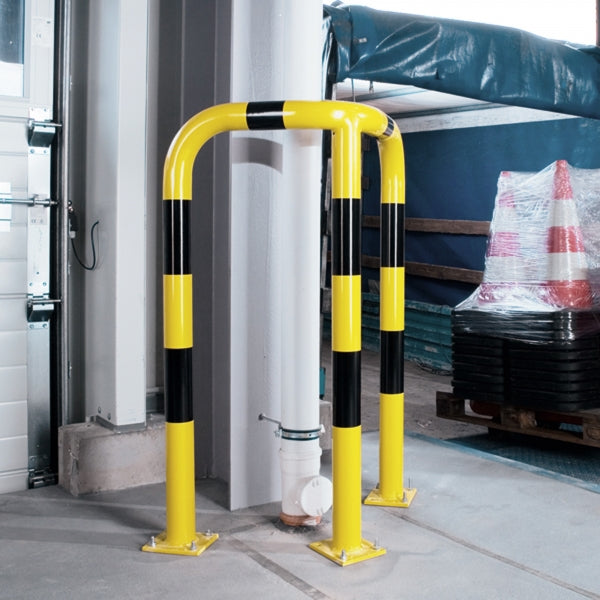

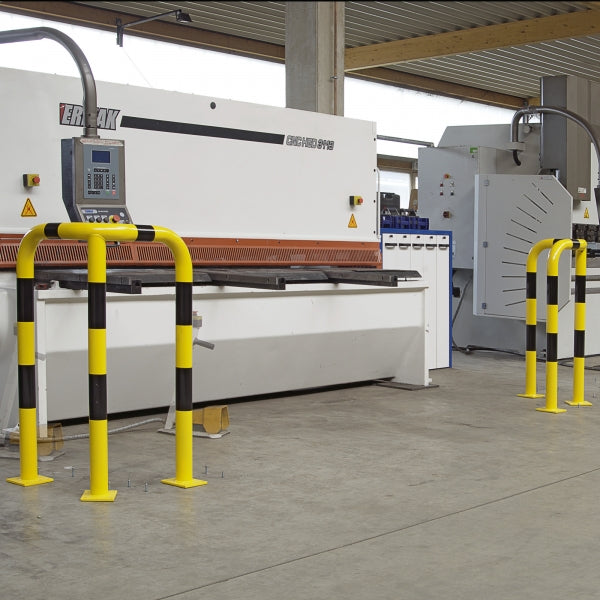

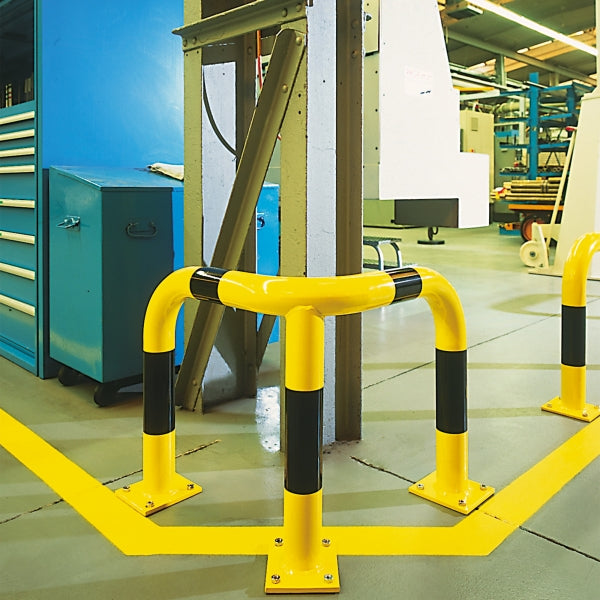

Steel Corner Protection Guards provide robust, heavy-duty protection for stock, traffic routes, and pedestrian walkways in warehouses and industrial spaces. They effectively separate vehicle lanes, such as stacker routes, while also safeguarding machinery, shelving, columns, and loading ramps from accidental impacts.
Constructed from high-strength German steel, these guards are built to last. The indoor version features a yellow powder-coated finish with black bands for maximum visibility in warehouses and freight depots. For outdoor use, the guards are hot-dip galvanized and powder-coated, ensuring resistance to rust and corrosion even in harsh weather conditions.
Designed for strength and durability, each guard comes with fully welded joints and base plates—unlike cheaper alternatives with tack welds. Installation is quick and secure, with three sturdy base plates allowing for easy bolting into concrete where protection is needed most.
| Specification | Powder Coated (Indoor) / 350(h) x 600(w) x 600(d)mm | Powder Coated (Indoor) / 600(h) x 600(w) x 600(d)mm | Powder Coated (Indoor) / 1200(h) x 600(w) x 600(d)mm | Hot-Dip Galvanised (Outdoor) / 350(h) x 600(w) x 600(d)mm | Hot-Dip Galvanised (Outdoor) / 600(h) x 600(w) x 600(d)mm | Hot-Dip Galvanised (Outdoor) / 1200(h) x 600(w) x 600(d)mm |
|---|---|---|---|---|---|---|
| Product Code | 765119 | 763405 | 765129 | 765124 | 765127 | 765121 |

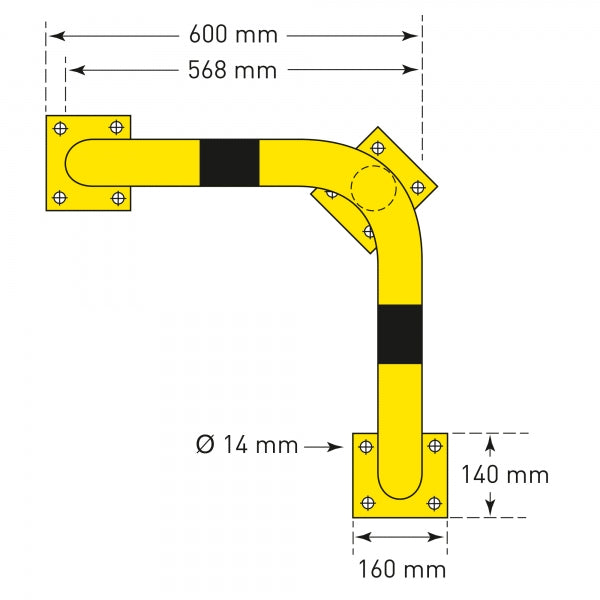

| Width | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |

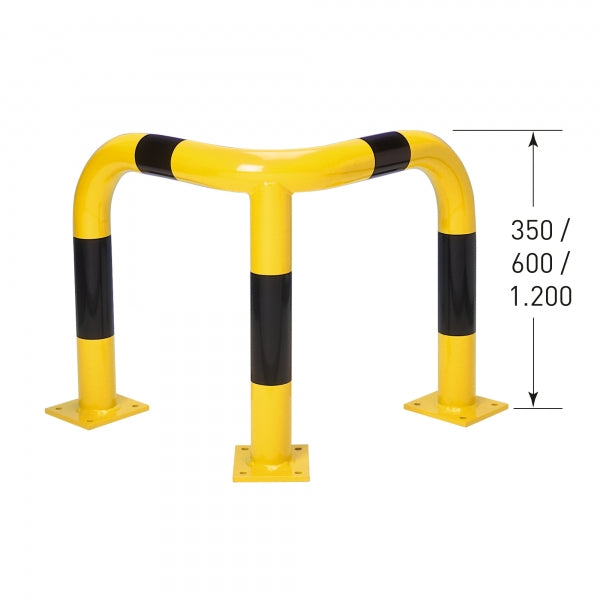

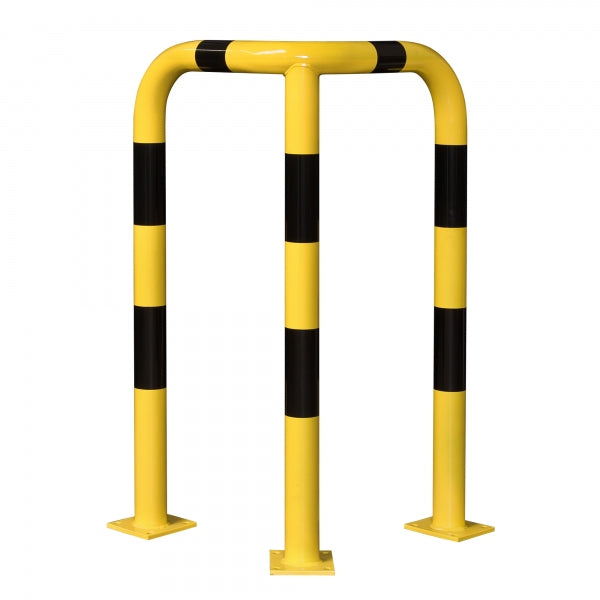

| Height | 350 mm | 600 mm | 1200 mm | 350 mm | 600 mm | 1200 mm |
| Depth | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Diameter | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Material | 3mm thick steel | 3mm thick steel | 3mm thick steel | 3mm thick steel | 3mm thick steel | 3mm thick steel |
| Hardware Included | 12no. 8 x 100mm rawl bolts | 12no. 8 x 100mm rawl bolts | 12no. 8 x 100mm rawl bolts | 12no. 8 x 100mm rawl bolts | 12no. 8 x 100mm rawl bolts | 12no. 8 x 100mm rawl bolts |
