Black Bull Heavy Duty Railing System - INDOOR

Product Specification:

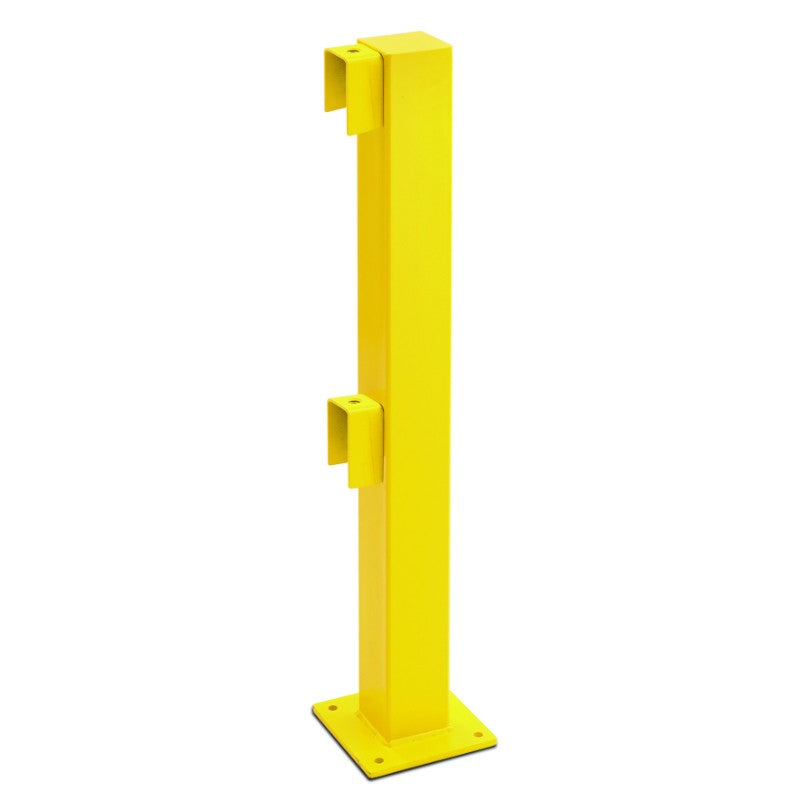

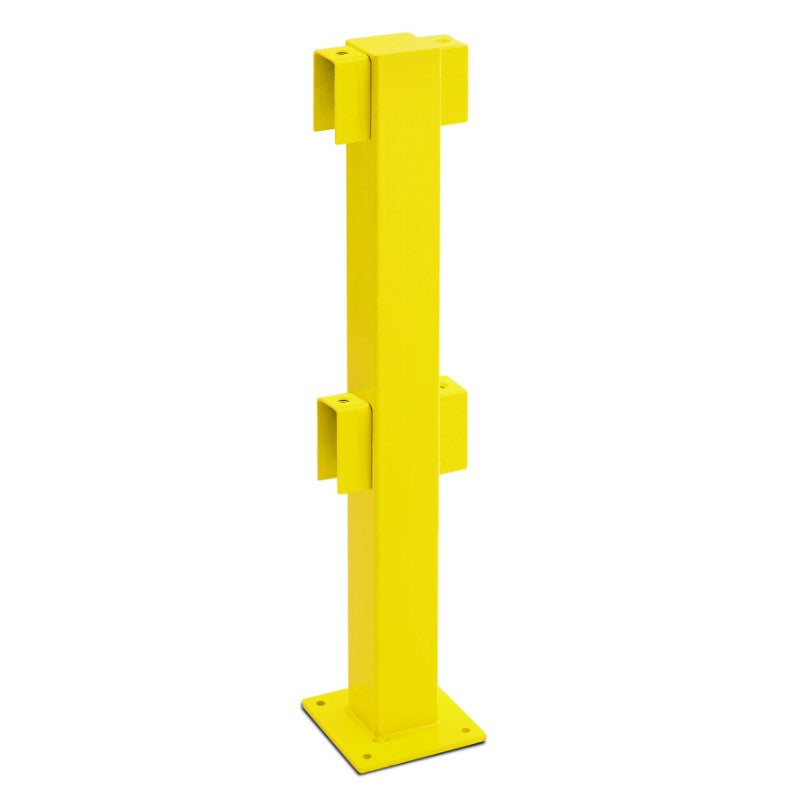

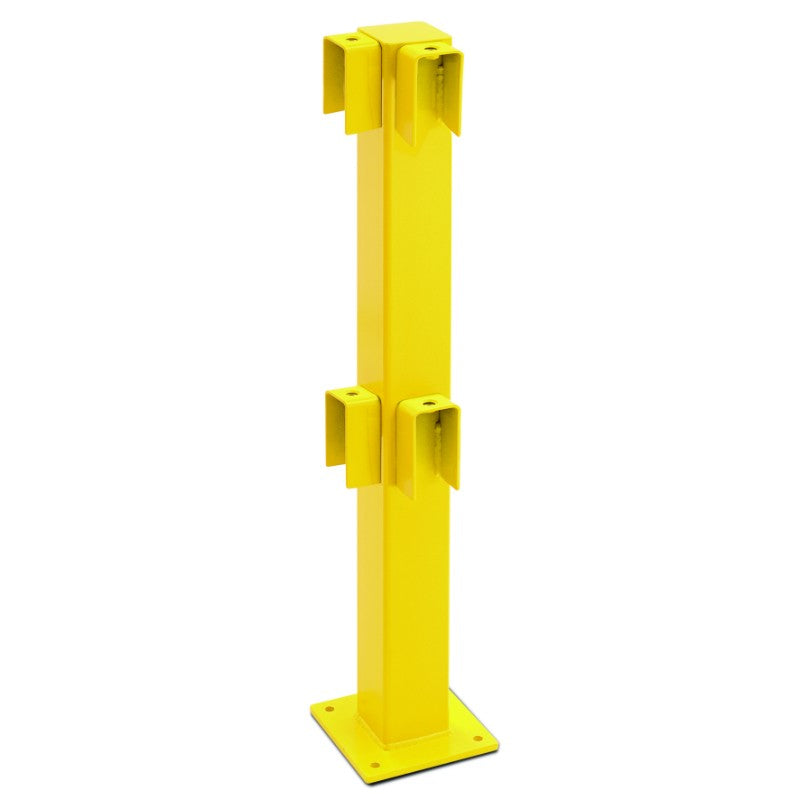

Posts

• Size: 100 x 100mm square
• Height: 1000mm
• Base plate: 200 x200 x 10mm thick (drilled 4 fixing holes)
• Material: High quality steel, powder coated yellow

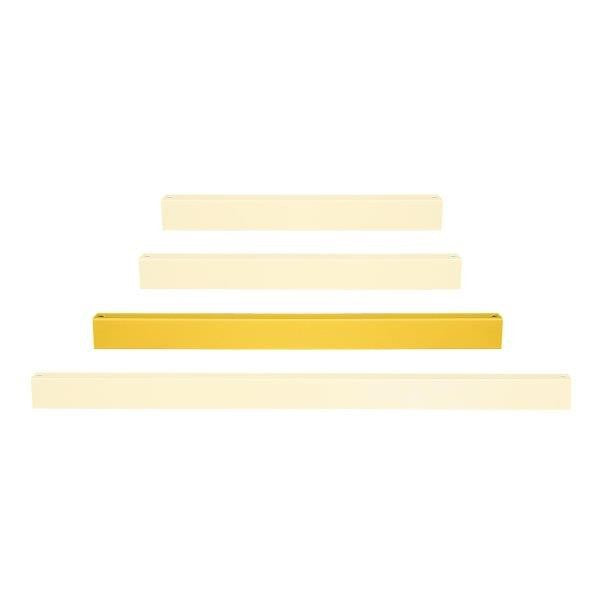

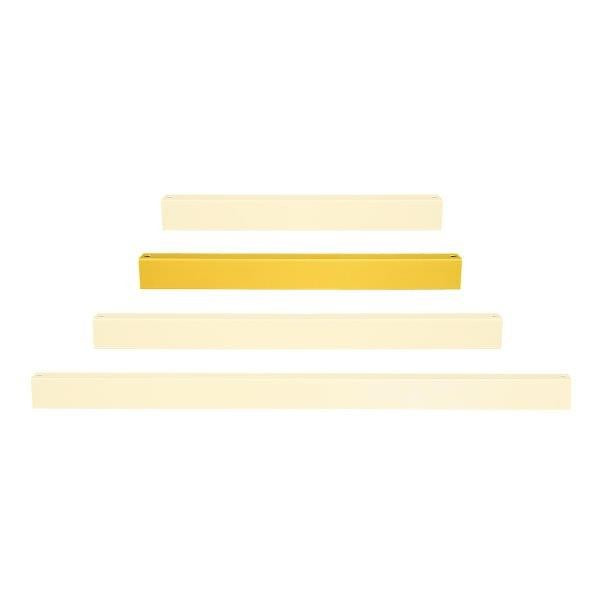

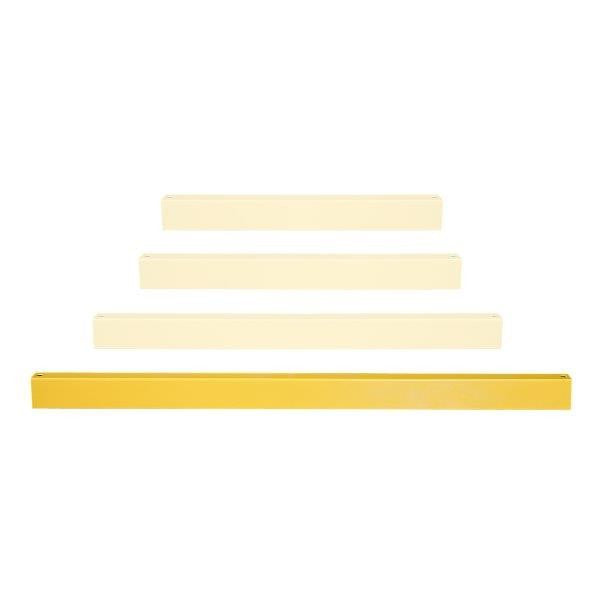

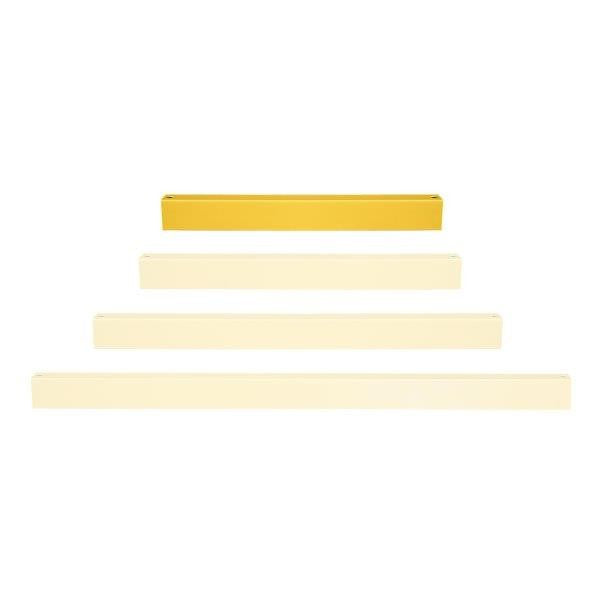

Lateral rails

• Size: 120mm x 80mm x 4mm wall
• Lengths: 1,000, 1,200, 1,500, or 2,000mm
• Material: High quality steel, powder coated yellow

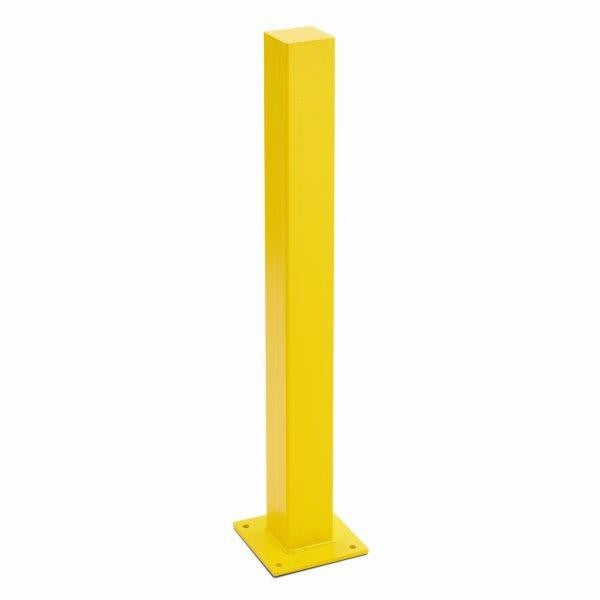

Matching bollards

• Size: 1,000mmH x 100 x 100mm Square
• Base plate: 200 x200 x 10mm thick (drilled 4 fixing holes)
• Material: High quality steel, powder coated yellow

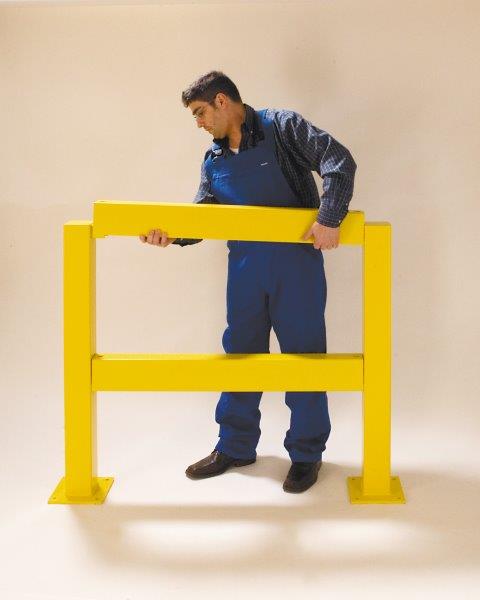

The Black Bull Heavy Duty Railing System is suitable for indoor use, and is finished in powder coated yellow. It provides excellent protection to assets in busy warehouses, as well as helping to protect pedestrians on walkways. The railing system is modular, allowing the user to create a barrier that is customised to their space.

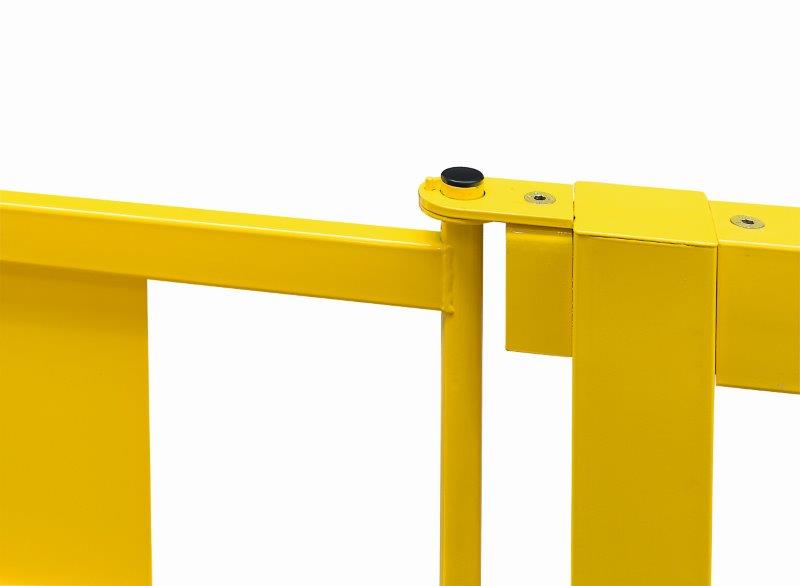

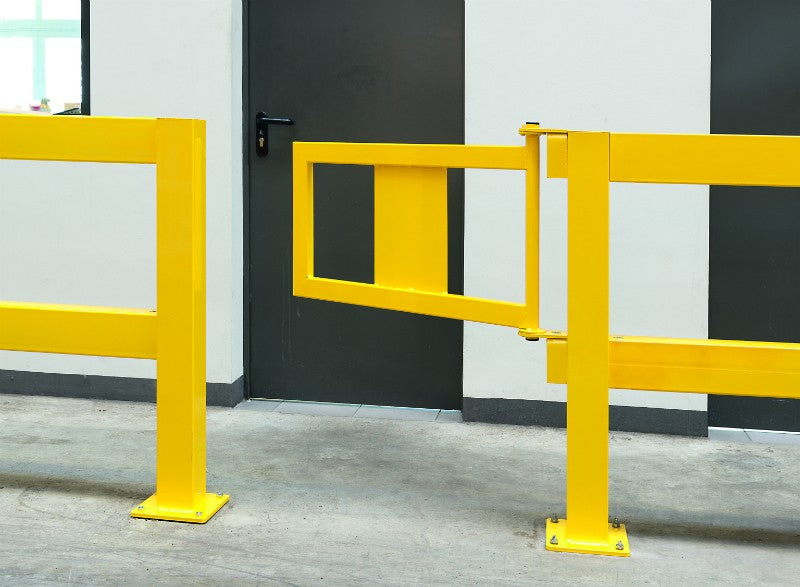

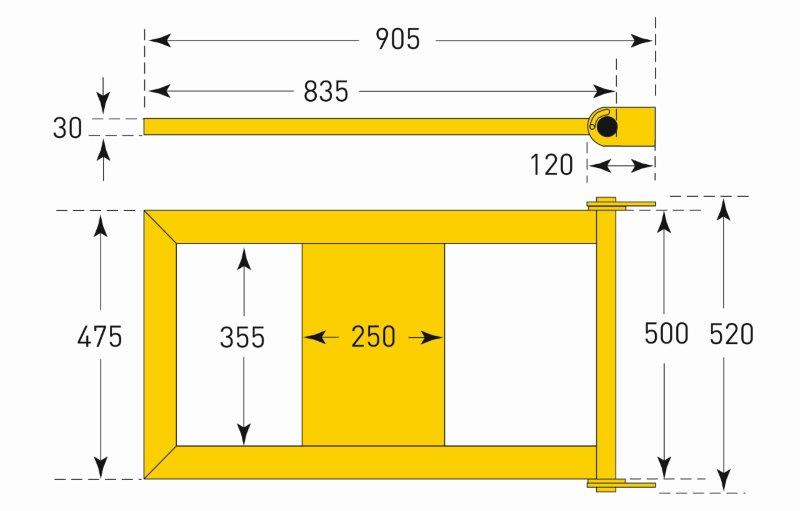

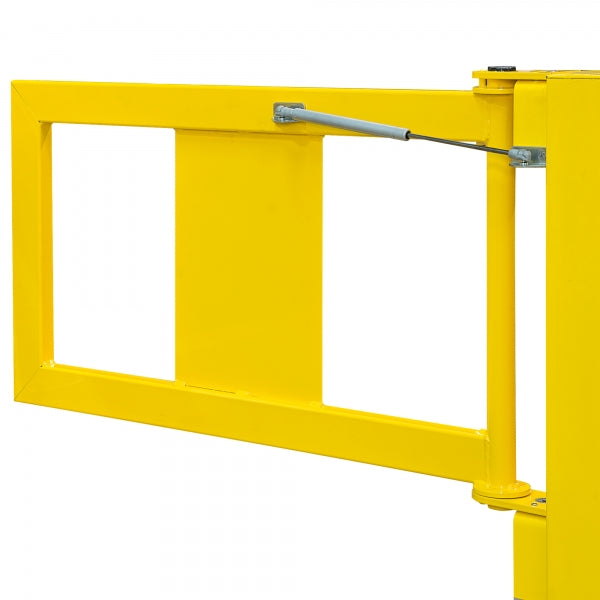

A swing gate can be added to the railing for safe pedestrian access. Where needed a matching bollard can be placed alongside the rail to block parts that aren't covered by the rail system.

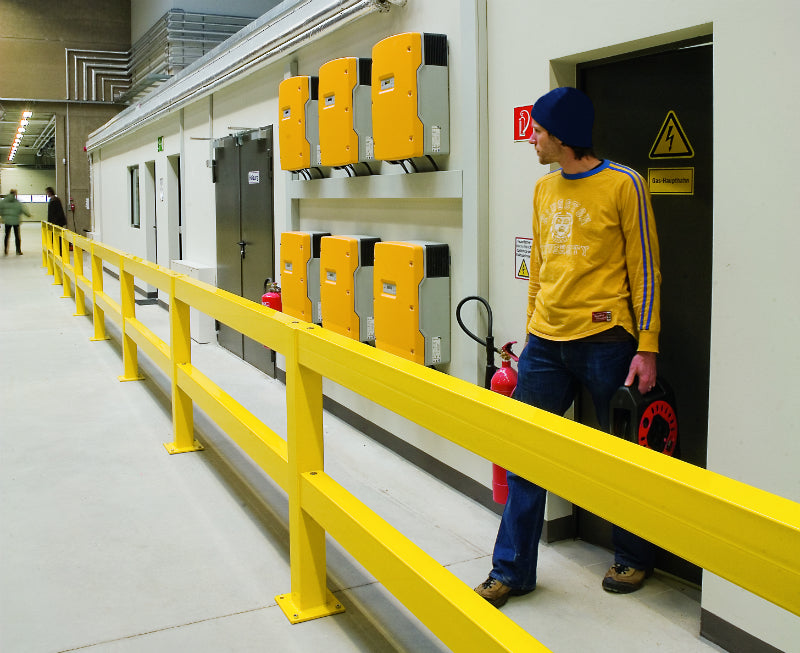

The warehouse railing system is ideal for areas where there is frequent forklift traffic or other warehouse tools such as pallet trucks. The railing system not only protects assets but also creates safe walkway areas for employees, keeping excellent workplace health and safety standards.

Applications:

Segregate traffic lanes from pedestrians (forklift lanes/pedestrian paths), ideal for protecting work areas, equipment, machinery and plant.

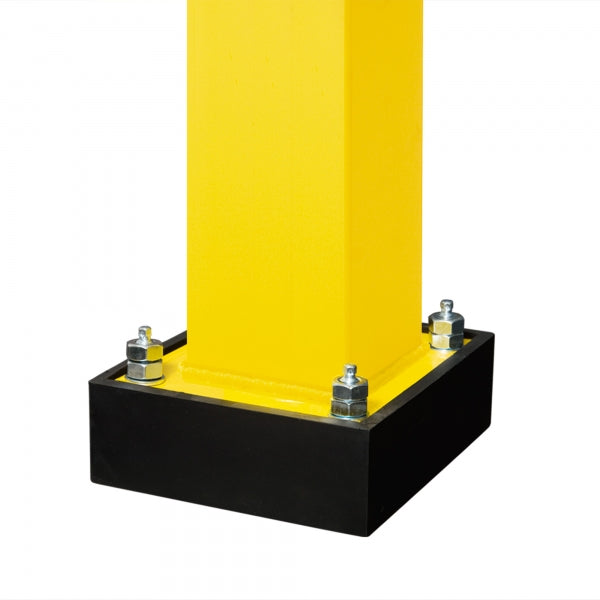

Optional FLEX Mounting.

By the addition of a polyurethane pad that is UV, weather and temperature resistant, the pad will be enabled to deflect up to 10 degrees. This allows the railing system to absorb shocks and impacts whilst damage is reduced significantly. The pad increases the height of the Railing System by 40mm and is installed using 4 chemi-anchors per post.
