Easy Installation

Professional Use

Rated at 5mp/h

Heavy Duty

High Visibility
Downloads:
Steel Reinforced Hose Ramp - Spec Sheet
- Description
- Specifications
Description
Product Specifications:
- Depth: 850mm
- Width: 3mm
- Height: 125mm
- Weight: 22kg
- Max Axle Weight: 12 Tonnes

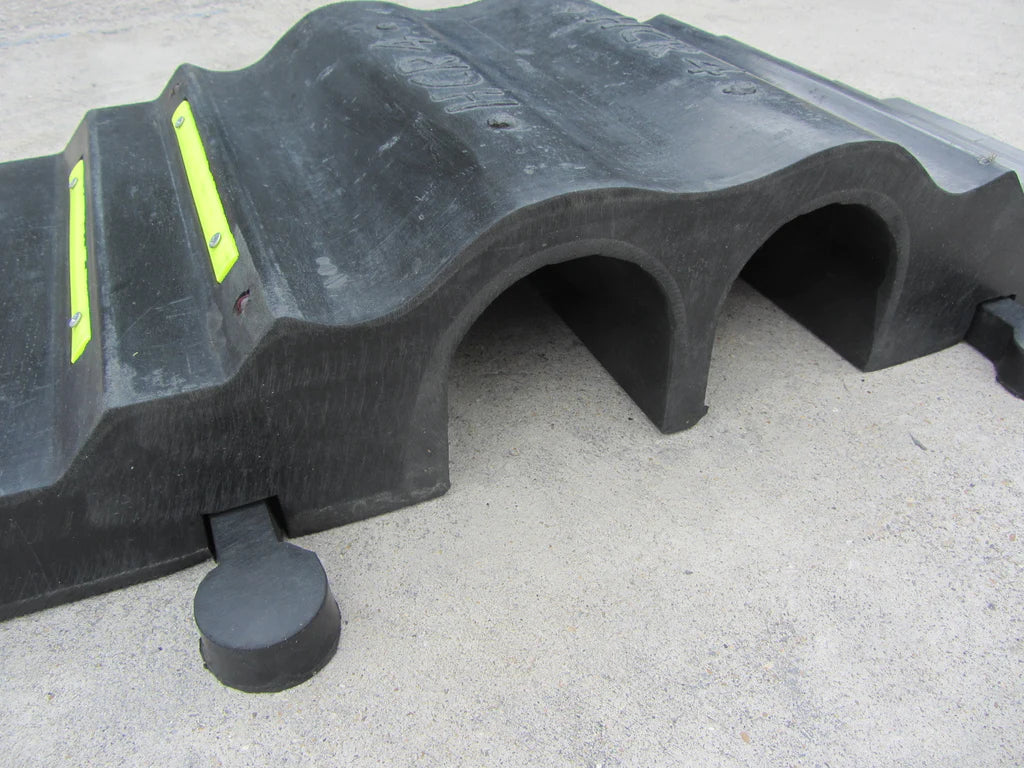

- Channels: 100 x 100mm

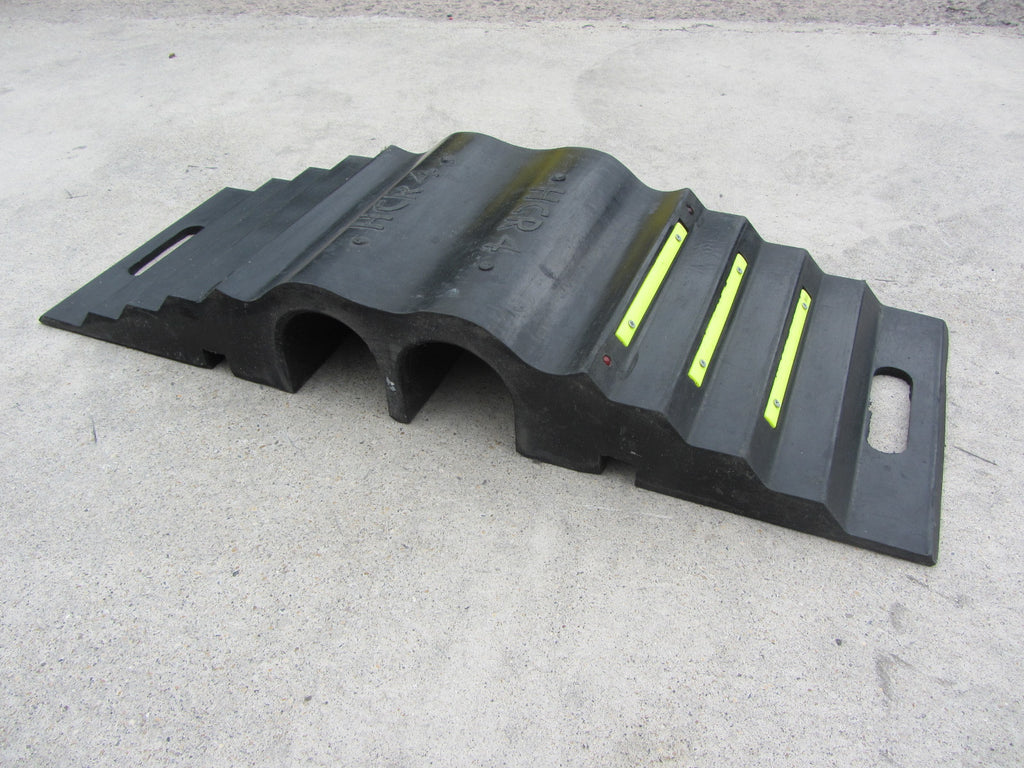

The Steel Reinforced Hose Ramp is a protective ramp designed for use with hoses and cables up to 100mm in diameter. Suitable for use with vehicles, the max axle weight of the ramp is 12 tonnes.
Made from hardened rubber, with steel reinforcing, the ramp is ideal for construction sites, logistic depots and areas with emergency vehicles. An integrated moulded handle on both ends of the ramp allows for easy depolyment and storage.

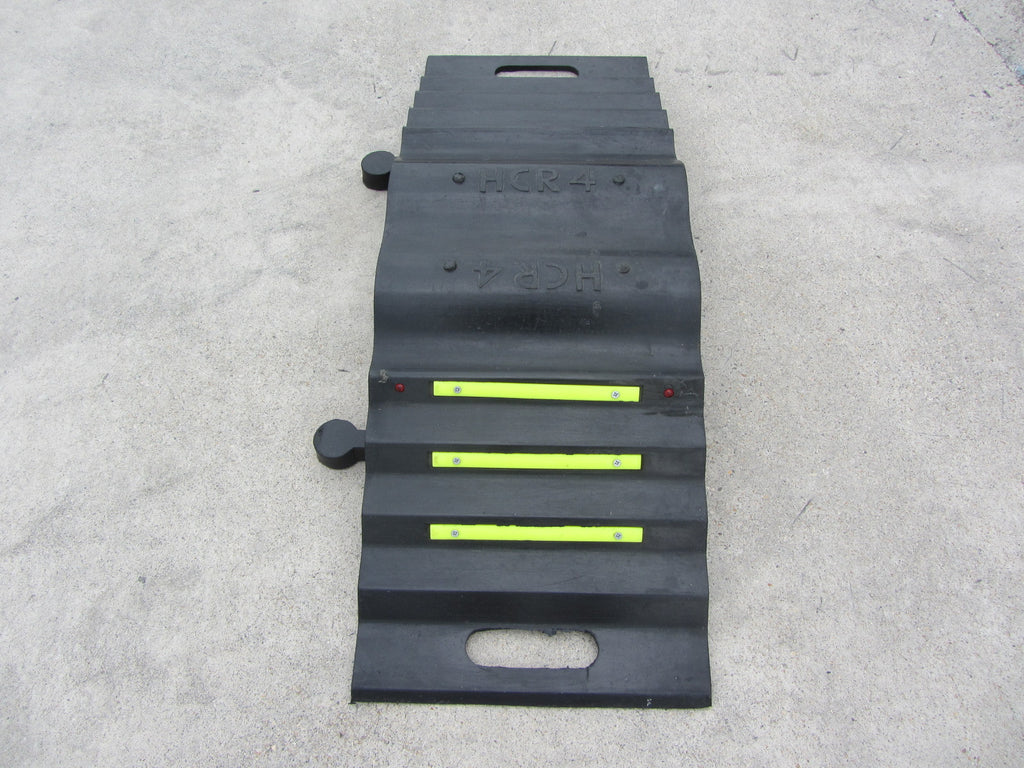

The ramp comes with three highly visible strips and two red reflective cats eyes embedded into the rubber. Included with the ramp is two connectors that allow multiple units to be joined together.
Specifications
Specification | Steel Reinforced Hose Ramp |
---|---|
Product Code | 862579 |
