Compact Swing Barrier Gate

Product Specifications:

• Height: 1000mm

• Pivot Post: 1000 x 100 x 100mm

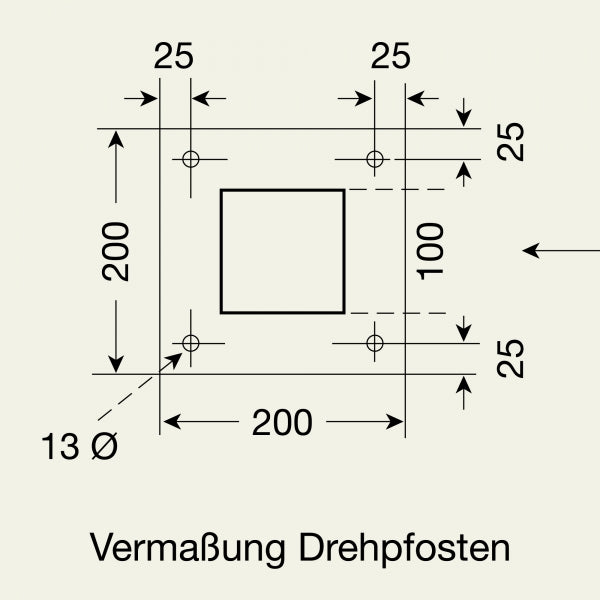

• Base Plate: 200mm x 200mm x 10mm
• Support Posts: 50mm x 50mm x 1000mm
• Crossbeam: 60mm x 30mm

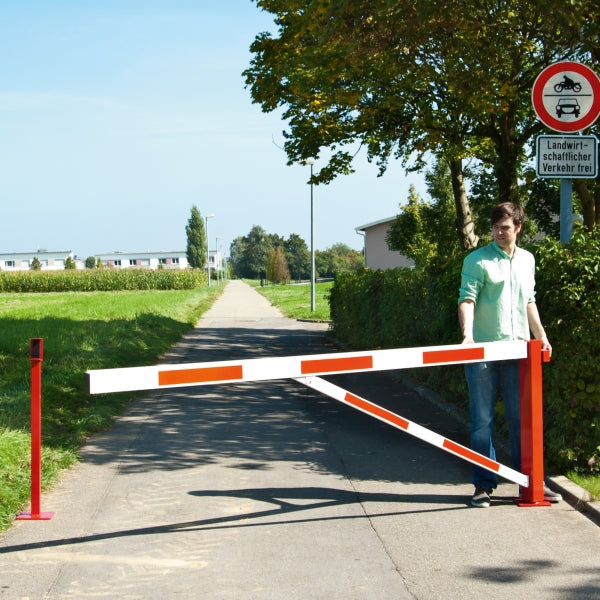

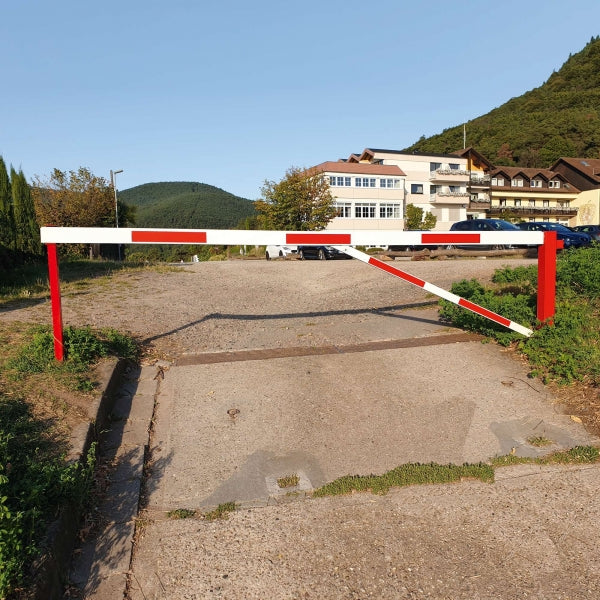

The Compact Swing Barrier Gate is a stylish yet functional access barrier designed for entrances into carparks, public buildings and commercial sites. The boom pivots to allow for access and can be locked in the open and closed positions.

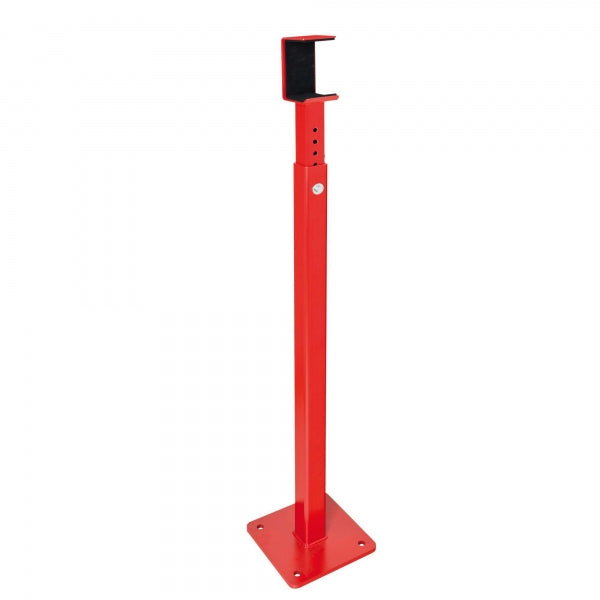

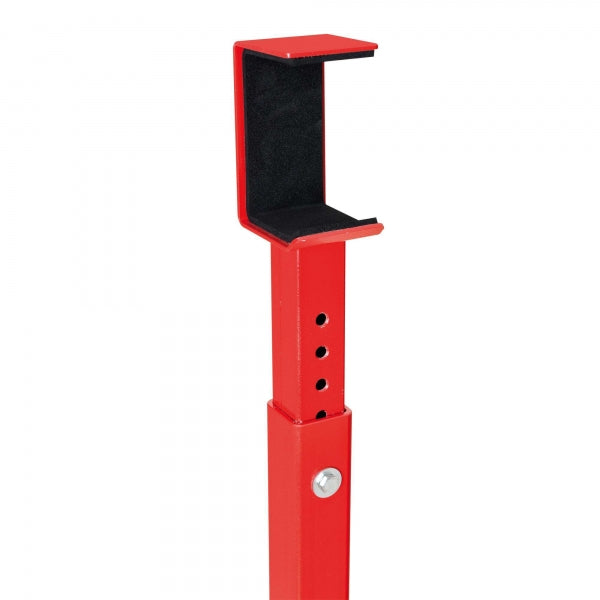

The barrier comes with 2no. support posts to ensure it is secured whether open or closed. The boom is manufactured from light aluminium that helps to reduce the overall weight of the barrier when opening or closing it.

The barrier comes powder coated red and white as standard. All steel components are hot-dip galvanised, making the barrier resistant to rust and corrosion. The boom arm features red reflective strips for visibility day and night. There is also an 'anti-sit' feature on the arm, ensuring no one can sit on and damage the arm.

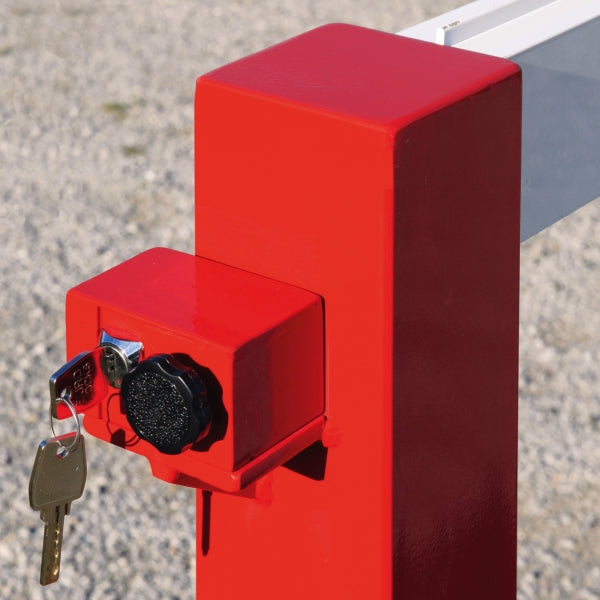

The barrier should be bolted down using the pre-drilled holes in the base plates. It is recommended to install a concrete pad underneath for the best hold. The barrier can be locked in the upright or down position using the integrated cylinder lock.

Overall Width vs. Drive Through Width

• 2500mm - 2205mm

• 3000mm - 2705mm
• 3500mm - 3205mm
• 4000mm - 3705mm
• 4500mm - 4205mm
