Economy Dock Bumper - Spec Sheet
Description

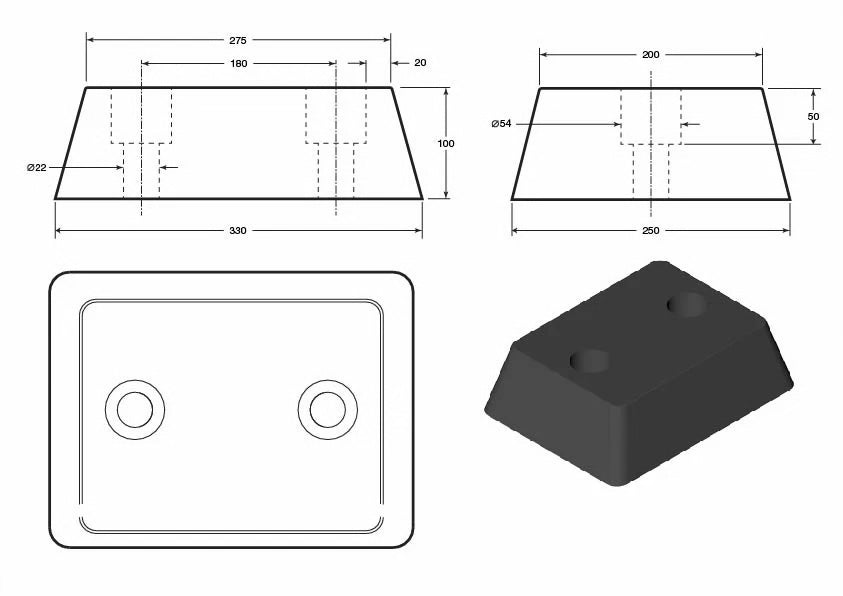

Product Specifications:
- Length: 330mm
- Depth: 100mm
- Width: 250mm
- Weight: 7kg
- Material: Natural/SBR Rubber
- Fixing Hole Diamater: 22mm
- Fixing Hole Recess: 50x50mm
- Hole Centres: 180mm

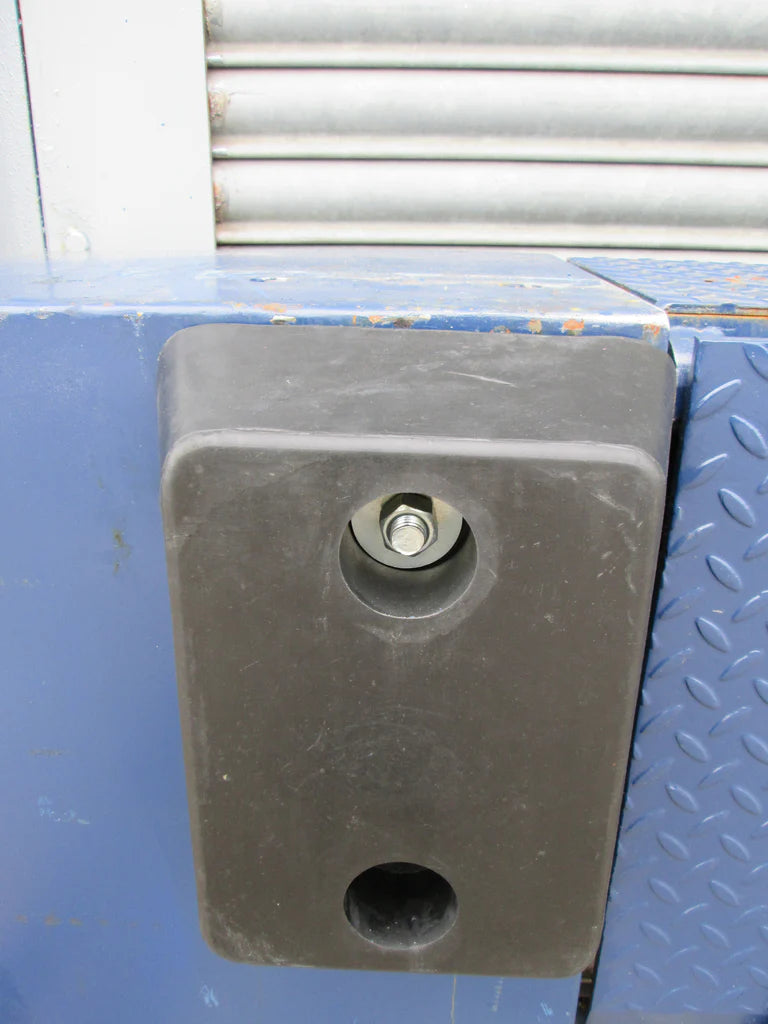

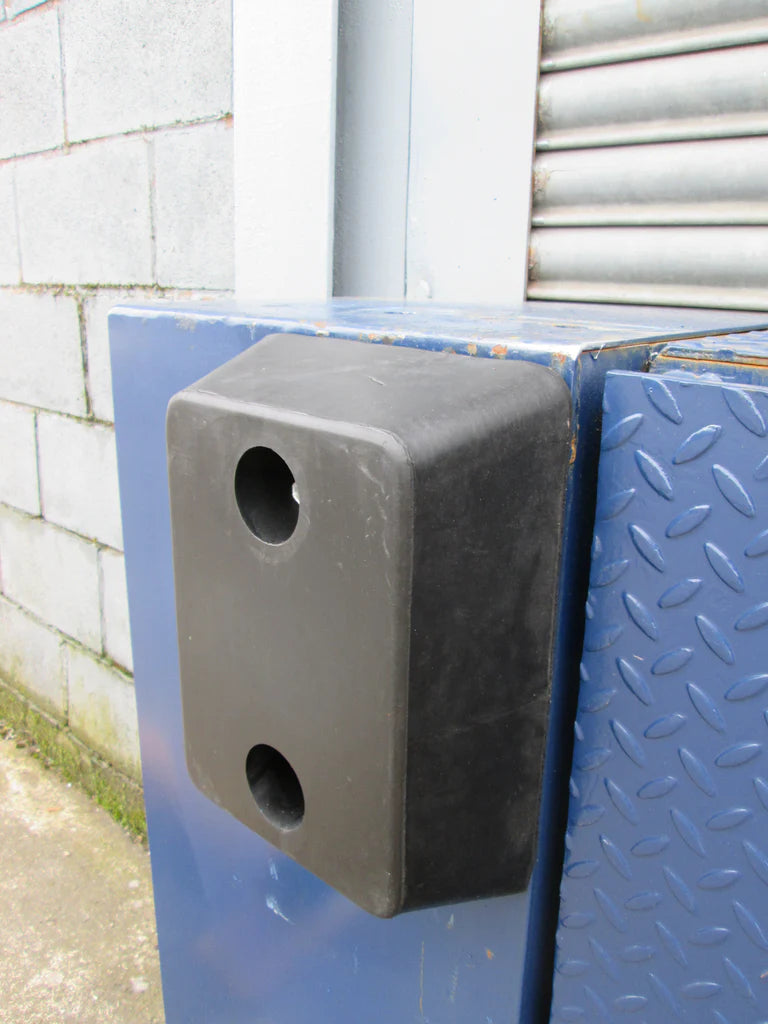

The Economy Dock Bumper is a small bumper designed for use at loading bays with light traffic. It can be used as a dock leveller and helps to protect the steelwork around the dock. The bumper does not have a back or front plate like other heavy duty bumpers.
The bumper is made from natural rubber, allowing for long-term outdoor use. Bolt the bumper directly to the dock at the necessary height. Fixings are required for installation but are not included in the order. The dock bumper is sold individually.
Fixing Information:
- Through Anchor Stud M20 x 220mm
- Washer 50mm OD x 26mm ID x 3mm THK
