Product Specifications:
- Height: 1000mm

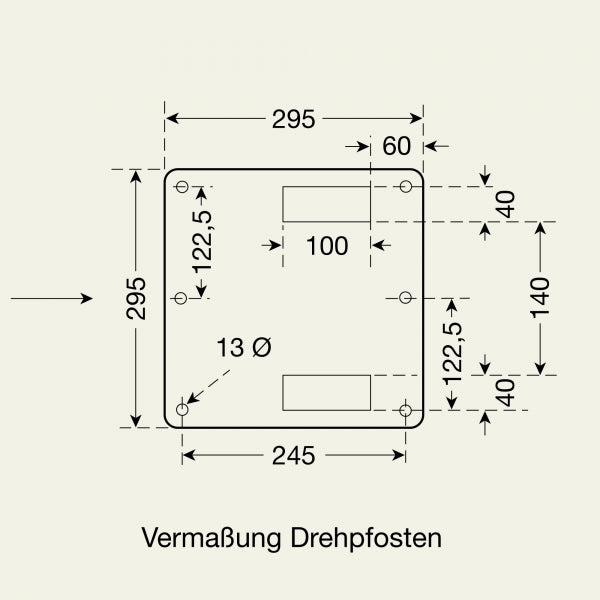

- Base Plate: 295x295x10mm
- Pivot Post: 200x100x100mm
- Support Arm: 50x50x1000mm
- Aluminium Arm: 90x60mm

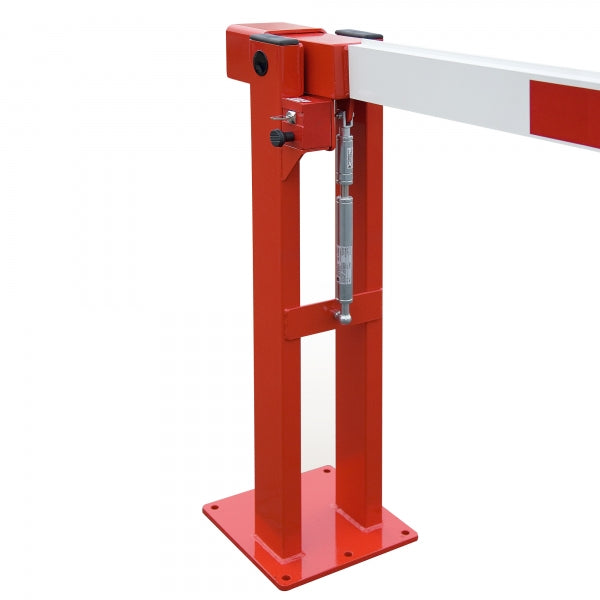

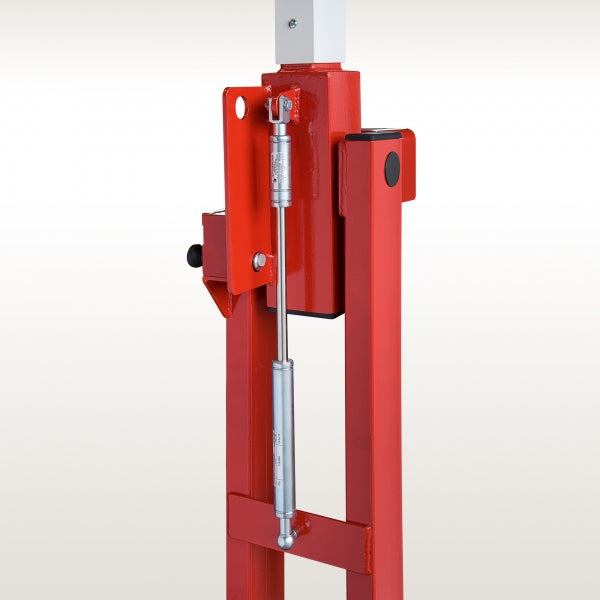

The Compact Access Barrier Gate - Gas Assist is a stylish and highly visible barrier designed to control the flow of traffic into carparks, factory yards and other private areas. The barrier is made from high quality galvanised steel and provides excellent use throughout it's lifespan. The gas assist strut allows the boom arm to be lifted and lowered with ease.

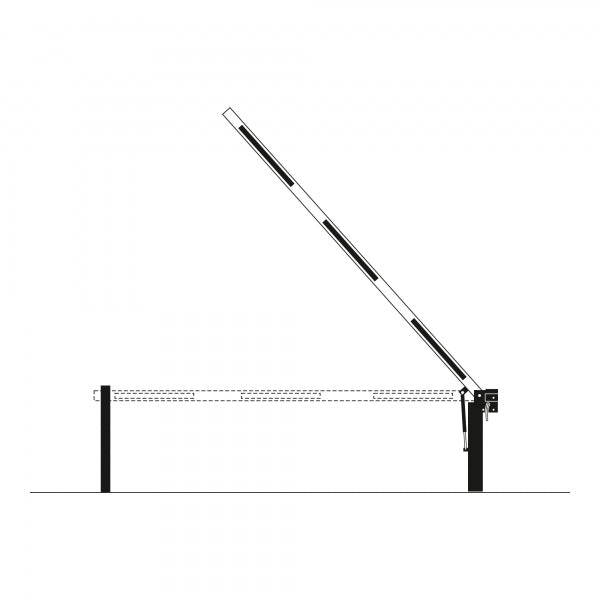

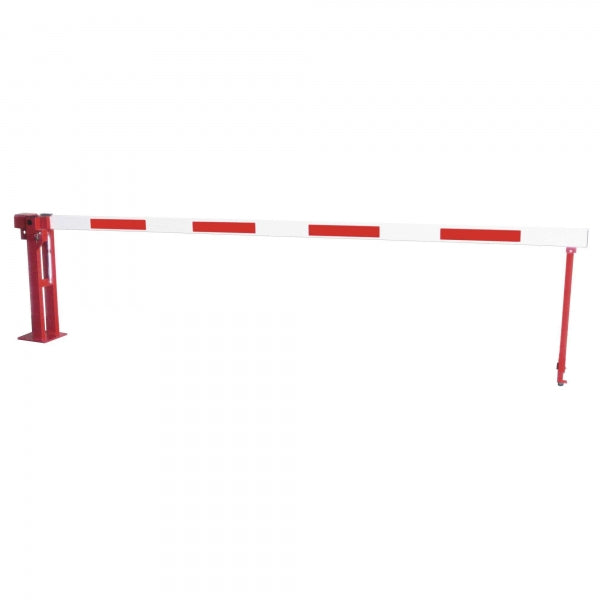

Choose from a barrier with a fixed support arm or a drop down arm, depending on the space available and the vehicles that will be driving through. The main boom is manufactured from light aluminium that helps to reduce the overall weight of the barrier when opening or closing it.
The barrier comes powder coated red and white as standard. All steel components are hot-dip galvanised, making the barrier resistant to rust and corrosion. The boom arm features red reflective strips for visibility day and night. There is also an 'anti-sit' feature on the arm, ensuring no one can sit on and damage the arm.

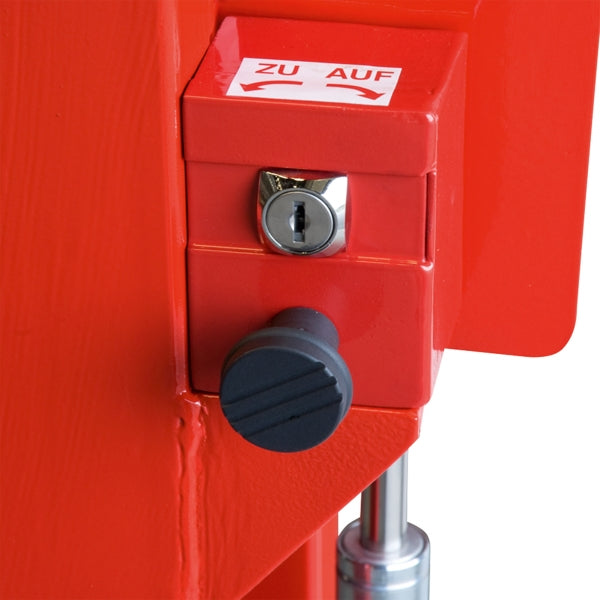

The barrier should be bolted down using the pre-drilled holes in the base plates. It is recommended to install a concrete pad underneath for the best hold. The barrier can be locked in the upright or down position using the integrated cylinder lock.
Overall Width vs. Drive Through Width
- 3320mm - 2900mm
- 3820mm - 3400mm
- 4320mm - 3900mm
- 4820mm - 4400mm
- 5320mm - 4900mm
- 5820mm - 5400mm
- 6320mm - 5900mm
