Compact Vehicle Height Restrictor - Fixed

Style Price Quantity
5 Metre Clearance (765437)
£1,720.98ex VAT
£2,065.18inc VAT
3 Metre Clearance (765440)
£1,546.71ex VAT
£1,856.05inc VAT
6 Metre Clearance (765441)
£1,743.23ex VAT
£2,091.88inc VAT
8 Metre Clearance (765445)
£2,322.00ex VAT
£2,786.40inc VAT
7 Metre Clearance (765447)
£2,083.94ex VAT
£2,500.73inc VAT
4 Metre Clearance (765448)
£1,698.65ex VAT
£2,038.38inc VAT
9 Metre Clearance (765449)
£2,344.34ex VAT
£2,813.21inc VAT
10 Metre Clearance (765451)
£2,366.68ex VAT
£2,840.02inc VAT
Allow 3 - 4 Weeks For Delivery

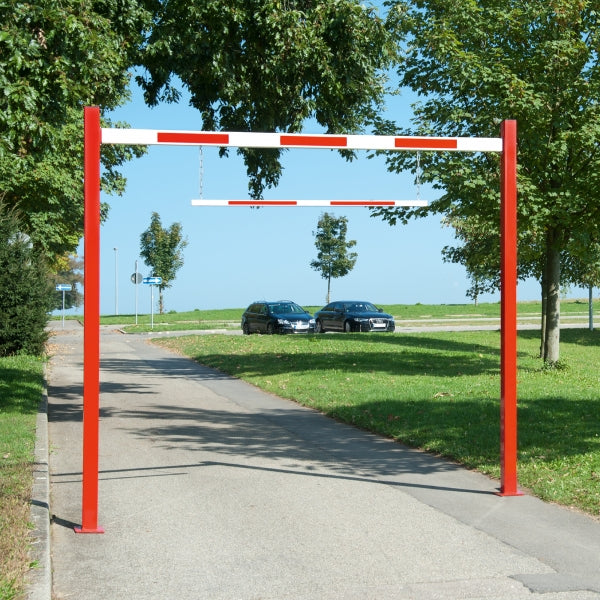

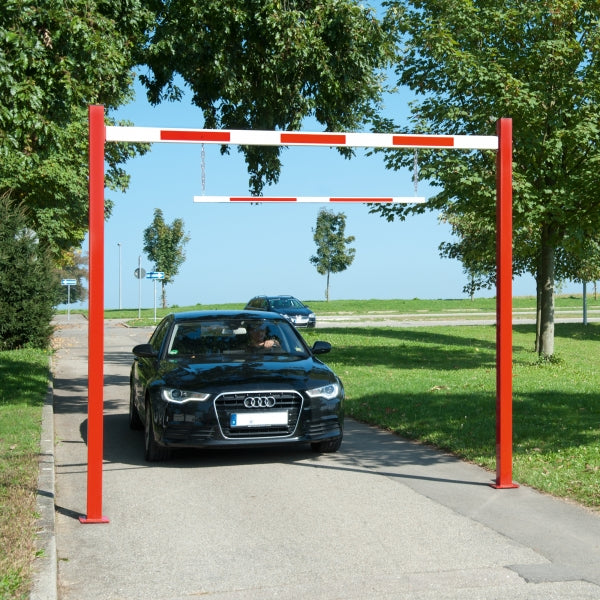

The Compact Vehicle Height Restrictor prevents unauthorised entry of vehicles e.g. trucks, caravans etc. into parking lots, onto rest areas or driveways.

  • All sizes adjustable from 2.8m to 3.0m in height
  • Total height: 3010mm
  • Max headroom: 2800mm
  • Clearance - distance for cars to drive through
  • Optional nudge bar as extra
  • Hot-dip galvanised - ideal for outdoor environments
  • Stable base construction for anchor bolts
  • Aluminium boom affixed via 2 absorption tubes
  • 2800mm Max Headroom
Description

With a strong steel and aluminium construction the Compact Access Height Restrictor is ideal for restricting access to vans, commercial vehicles, caravans, motorhomes etc. to car parks, traffic lanes, etc. The highly durable hot-dip galvanised design makes them perfect for outdoor environments where they are highly resistant to weathering and corrosion.

Comprising of two steel posts, hot dip galvanised and painted red, and a white aluminium cross bar with red retro-refl ective strips for day or night visibility.

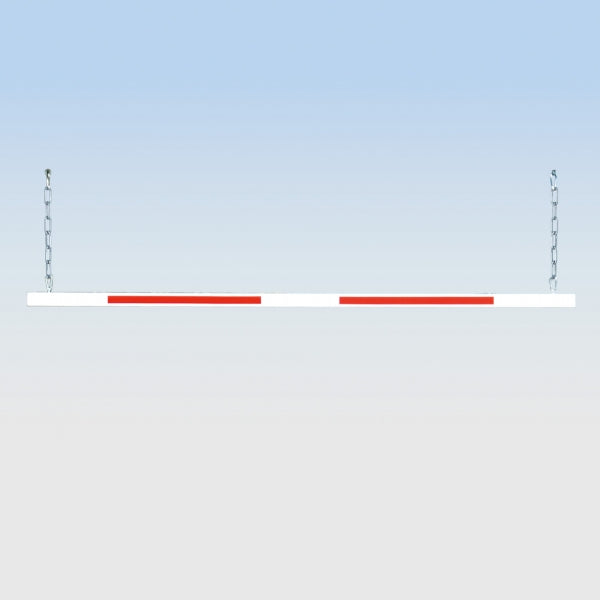

Additionally you can also add the optional nudge bar, easily attached to the underside of the main boom that will further reduce the height clearance where necessary.

Each of the main booms is fitted with reflective red and white markings, perfect for dark roads and dark conditions where motorists will need to see the barrier in place.

Dimensions:

Support Posts: 100 x 100 x 3mm

O/all height: 3,010mm

Base plate: 295 x 295 x 10mm

Drilled 6 fixing holes

15mm Ø

Aluminium cross-bar: 105 x 60mm

Max. Headroom: 2,800mm

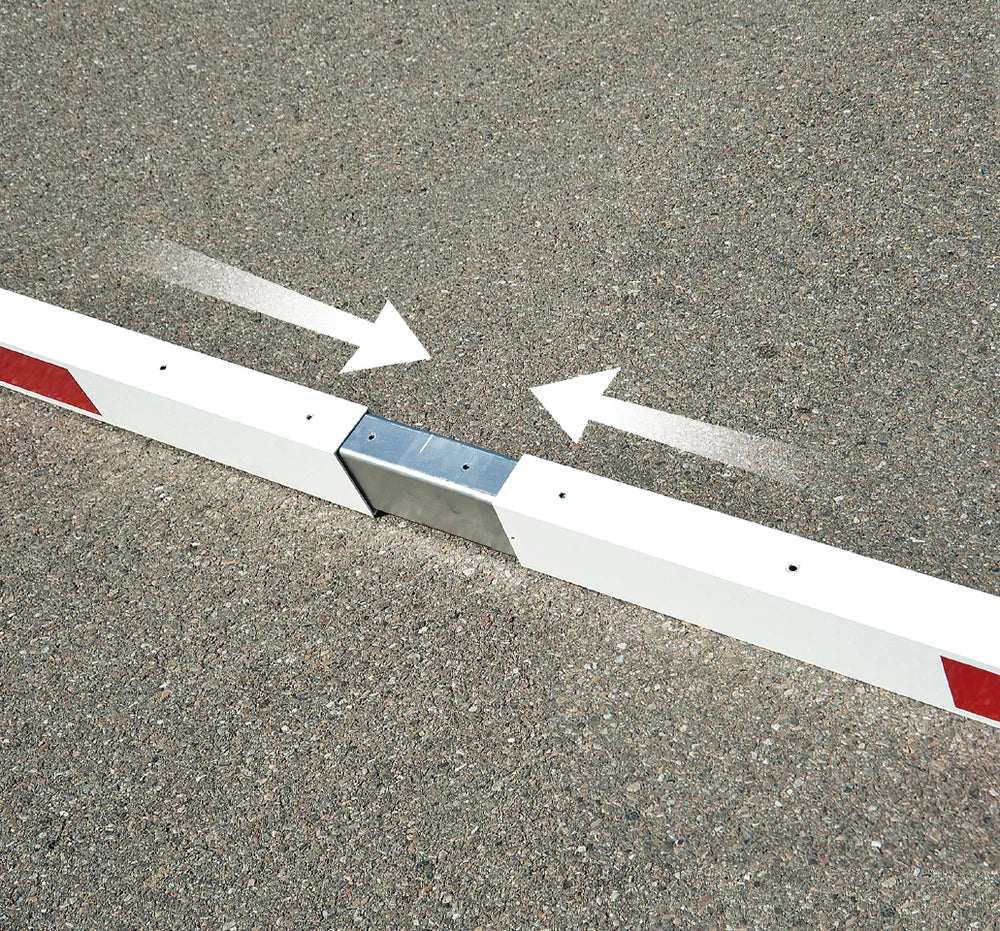

Widths (total): 3,230 to 10,230mm (above 6,000mm Cross Bar is supplied in two lengths and joined using steel insert).

Adjustable heights: 2,800mm, 2,650mm, 2,500mm, 2,350mm and 2,200mm. (Heights can be reduced further by up to 400mm with optional chain suspended nudge bar).
