Compact Gate Barrier System

Product Specification:

• Height: 1000mm
• Pivot posts: 100 x 100 x 1000mm

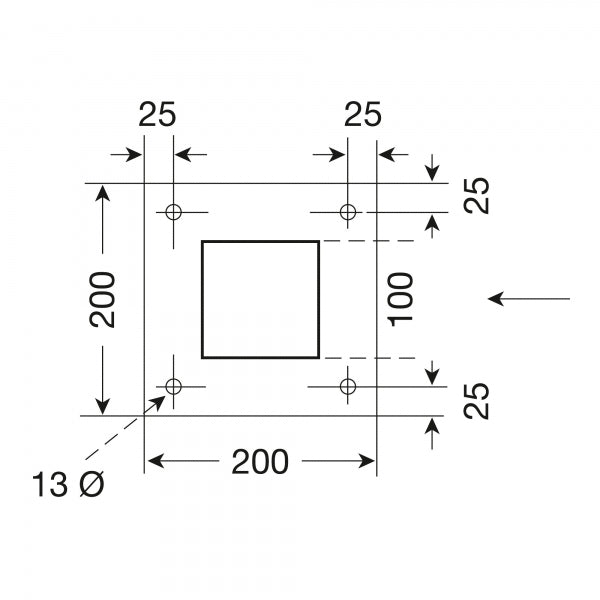

• Base plates: 200 x 200 x 10mm (Drilled 4no. holes  13mm Ø)
• Alu-Barrier arms: 90 x 60mm
• Alu-struts: 60 x 30mm

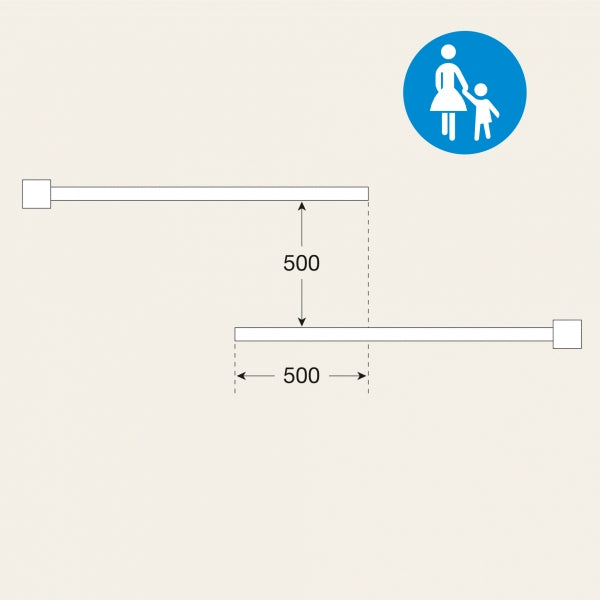

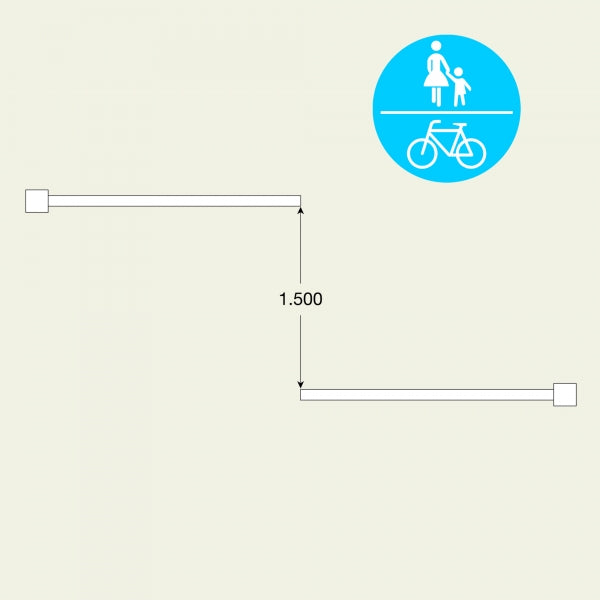

The Compact Gate Barrier System is designed to block vehicle traffic from entering a designated area but allows pedestrians and cyclists to safely pass through the gate. The pivoting arms overlap to ensure cars can't slip through but can be opened when access is needed.

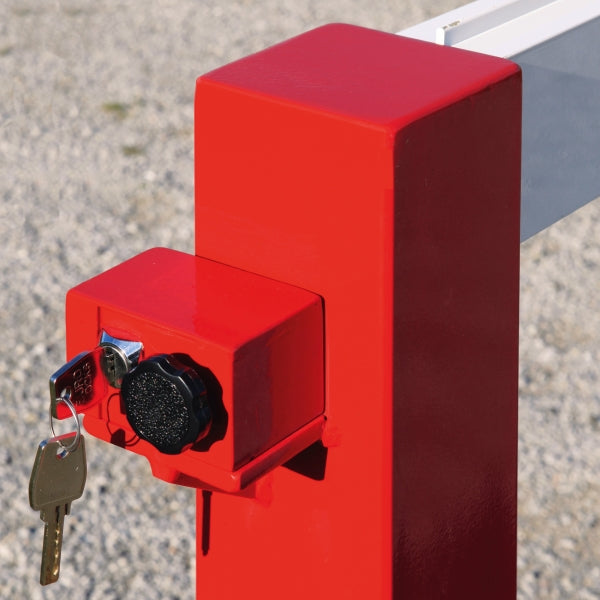

The light aluminium arms are easy to open and close and lock into both positions. The integrated cylinder lock comes with 2no. keys. Red reflective strips on each arm ensures the barris is seen day and night. The barrier comes powder coated red and white as standard. All steel components are hot-dip galvanised, making the barrier resistant to rust and corrosion.

The barrier should be bolted down using the pre-drilled holes in the base plates. It is recommended to install a concrete pad underneath for the best hold.
